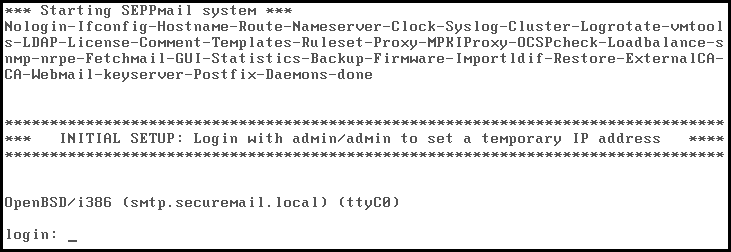

If the SEPPmail Secure E-Mail Gateway has finished its start-up sequence, a login prompt appears:
********************************************************************************
*** INITIAL SETUP: Login with admin/admin to set a temporary IP address ***
********************************************************************************
OpenBSD/amd64 (smtp) (ttyC0)
login: _
Login with:
standard user name: admin
standard password: admin
After the login, you are asked for entries.
****************************************************************

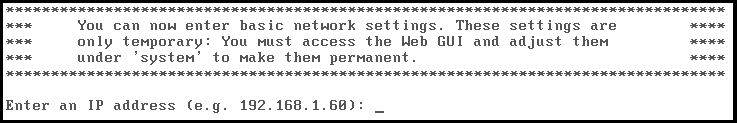

* You can now enter basic network settings. These settings may *
* be found in the admin GUI under 'System' for later changes. *
****************************************************************
Enter an IP address (e.g. 192.168.1.60 or dhcp): _
Data to be entered in sequence:
•IP address
•Network mask: network mask as prefix length in CIDR notation; for example, 24 corresponds to the subnet mask 255.255.255.0.
•MTU: optional (see Information required for commissioning)
•Default gateway
•DNS: optional (see Information required for commissioning)

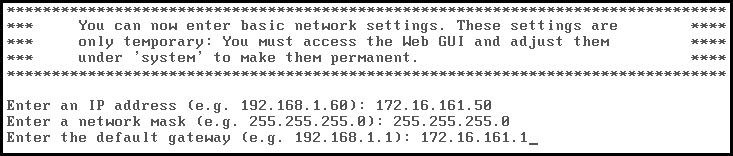

Example result:
****************************************************************
* You can now enter basic network settings. These settings may *
* be found in the admin GUI under 'System' for later changes. *
****************************************************************
Enter an IP address (e.g. 192.168.1.60 or dhcp): 172.16.161.50
Enter a network mask (e.g. 16 or 24): 24
Enter a valid MTU between 68 and 65535, empty for default:
Enter the default gateway (e.g. 192.168.1.1 or dhcp): 172.16.161.1
Enter the DNS, empty for built-in (e.g. 192.168.1.1 or dhcp): _
|
|

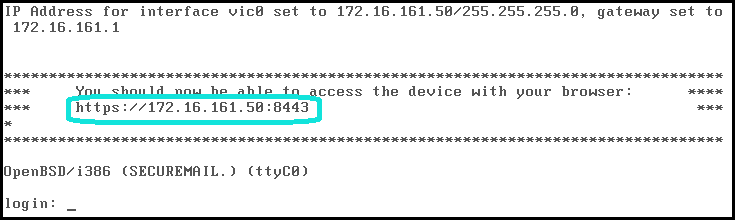

After this the URL for the administrator login is displayed, for example:
IP Address for interface 'vic0' set to '172.16.161.50/24', gateway set to '172.1
6.161.1'
DNS set to 'built-in'
********************************************************************************
*** You should now be able to access the device with your browser: ***
*** https://172.16.161.50:8443 ***
********************************************************************************
OpenBSD/amd64 (smtp) (ttyC0)
login: _
Now the web administration portal of the SEPPmail Secure E-Mail Gateway can be reached via the displayed URL in the browser until a reboot (see Login As Administrator).
If necessary, the "Initial network setup" can be called up again via the Rudimentary System Commands.
|
|
